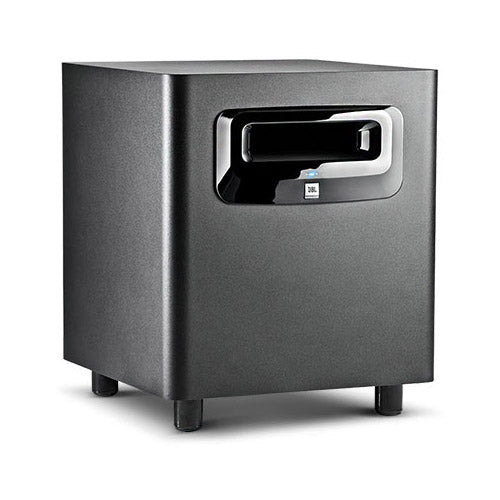

The latest addition to JBL's acclaimed 3 Series Studio Monitors, the JBL LSR310S 10" Sub lets you extend your system LF all the way down!
The JBL LSR310S subwoofer incorporates JBL"'s patented Slip StreamT Port working in concert with a custom 10"" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today"'s dance clubs.
JBL LSR310S Features
JBL Patented Slip Stream Port
This patented JBL port design works in concert with the JBL LSR310S low frequency driver for deep, dynamic bass response at all playback levels. The double-flared shape of the port is precisely calculated to optimize low-frequency extension.
XLF Extended Low Frequency Setting
A JBL first, the XLF setting activates a specially-engineered tuning that emulates the ample bass tuning used in today"'s dance clubs. When producing a dance track, the XLF setting will inspire you and bring a bit of the club to your control from. For inspiration to the max, position the JBL LSR310S in the nearest corner of your room and activate the XLF setting.
Custom 10"" Down-Firing High Excursion Low Frequency Driver
JBL Transducers are legendary for their performance. The custom-designed driver in the JBL LSR310S exemplifies JBL engineering prowess, delivering deep low frequency response into the 20 Hz region, and 113 dB peak output, for long periods at full rated power with no risk of failure.

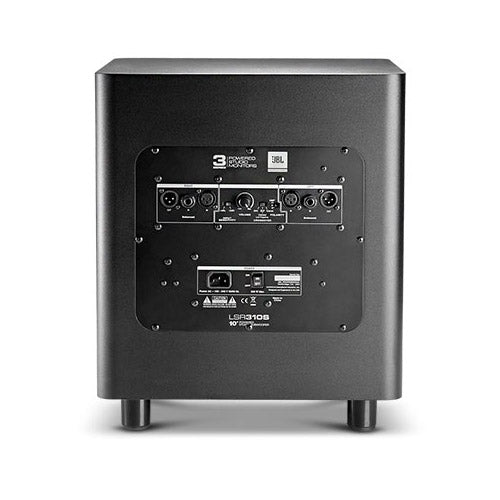

Professional Balanced Inputs and Outputs
with balanced XLR and 1/4"" inputs and XLR outpus you can add the JBL LSR310S to any studio monitor system to extend its low frequency performance or use it as the "".1"" LFE Channel in a surround sound system.
Selectable Input Sensitivity
The -10dBV/+4 dBu sensitivity switch ensures compatibility with a broad range of signal sources, allowing you to connect the LSR310S to high-output professional equipment without any danger of input overload.
Three Crossover Settings
The 80 Hz setting is recommended for use with the LSR305, LSR308 or any studio monitors. The External setting allows use of an outboard crossover.
Volume Control
Simple and effective, the LSR310S volume control has detents that make it easy to balance the JBL LSR310S in your studio monitor system
SPECS
Driver250mm (10-inch) High-Excursion, Down-Firing
Low Frequency Extension27 Hz
Max Peak SPL113 dB
Amplifier Power200 W CLass D
Crossover Settings80 Hz, XLF, External
Inputs2 x XLR, 2 x TRS Balanced
Outputs2 x XLR
Maximum Peak Input Level+20.3 dBu
AC Voltage100-240 VAC +/- 10% 50/60 Hz
Dimensions (HxWxD)448 mm x 381 mm x 398 mm
(17.65 in x 15 in x 15.65 in)
Weight15.6 kg / 34.3 lbs
