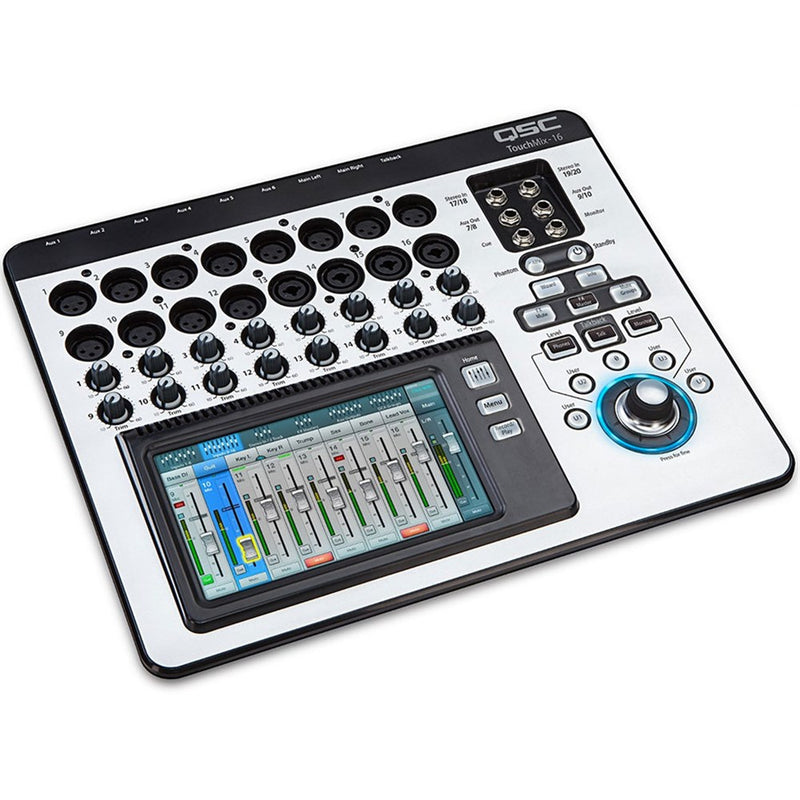

The QSC TouchMix-16 digital mixer is ready to run the show - with 12 mic ins, 4 mic/line ins and 2 stereo line ins, plus onboard DSP FX and iPad remote control.
The QSC TouchMix 16 offers musicians, production professionals and live performance venues the power and capability of a large format console in a highly portable, fully integrated, affordable and easy to use product.
Just as digital cameras offer advanced features to meet the needs of highly skilled professional photographers with ""point and shoot"" features to assist novice users in achieving optimum results, the QSC TouchMix-16 (20 input channels) provides the user a choice of Advanced Mode operation that offers total control over all parameters or Simple Mode that provides only the most essential controls.
Big Mixer
QSC TouchMix 16 ""no asterisk"" specifications include 4-band, fully parametric EQ with both variable hi-and lo-pass filters, as well as comprehensive dynamics processing on each input channel. Four mix busses feed four internal, professional, digital effects processors. Comprehensive dynamics, graphic EQ, hi- pass, lo-pass and notch filters and delay are available on both the main and aux outputs and there are 8 DCA groups with mutes as well as 8 mute groups. With four (TouchMix-8) or ten (TouchMix-16) auxiliary output channels, QSC TouchMix 16 also has ample stage monitor mixing capability. Both models have the ability to drive multiple, wired stereo in-ear monitors directly.
Fast, Professional Results
The QSC TouchMix 16 features a comprehensive library of Channel Presets, created specifically for the unique requirements of live sound reinforcement. Designed by veteran live sound engineers utilizing all types of instruments, popular microphones and pickups as well as multiple types of speakers systems, these presets help the user achieve great results quickly. The mixers"' onboard Effects Wizard guides the user through the selection and assignment of appropriate effects while the Gain Wizard continuously monitors and displays input clipping. TouchMix also comes with a comprehensive library of complete Mixer Scenes, and all user parameters of any mix can be saved, both internally and via USB drive.
Compact and Complete
The QSC TouchMix Series models are completely self-contained and require no external PC or video display. The graphic, color touch-screen provides access to all mix parameters along with a physical rotary encoder and hardware buttons. The available Remote Control App for iOS devices controls all mixer parameters and the included USB Wi-Fi adapter creates the network connection between the mixer and the hand-held device. No external network hardware is required. The mixer is also capable of direct recording to an external USB hard drive in 32-bit broadcast wave format. Tracks can be played back on the mixer or imported into most DAW software for over-dubs and post-production. QSC TouchMix Models also come complete with their own padded carrying case, for transport and protection.
QSC TouchMix 16 Features

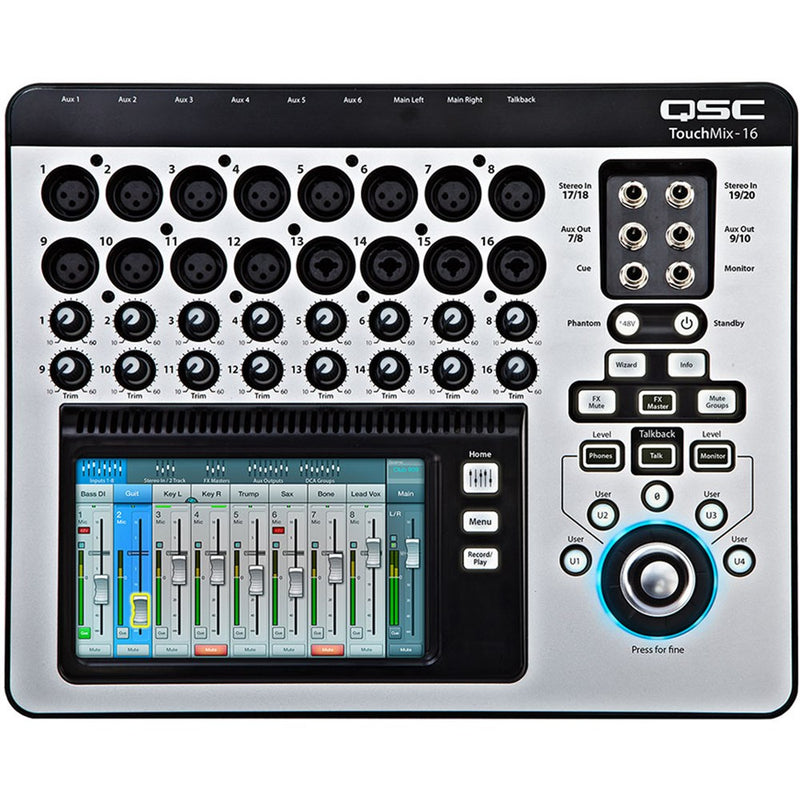

- 20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track
- Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
- TRS Aux outs drive wired In Ear Monitors (IEM) directly.
- 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels.
- Gate and compressor on all input channels.
- 4 professional quality stereo DSP effects plus a pitch corrector.
- 1/3 octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.
- 8 DCA and 8 Mute groups.

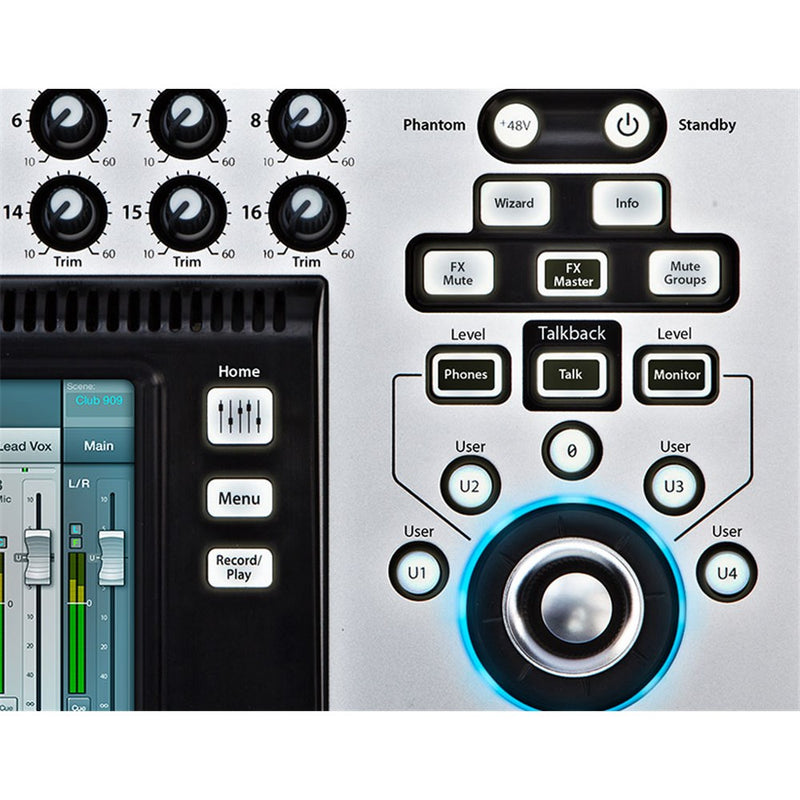

- Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
- Wizards, info and preset libraries assist the user with channel setup, effects selection and more.
- Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.
- Remote control via mobile devices. Wi-Fi interface included.
