JBL SRX800 SERIES
JBL Professional has made a name for itself by producing great sounding, long lasting portable PA systems. With the introduction of the SRX800 line of powered portable PA loudspeakers, JBL has set the standard for what a fully professional powered PA system should be. SRX800 breaks new ground, bringing together JBL’s premium transducers and enclosures, Crown’s Proprietary Front-End DriveCore Technology, user-configurable DSP, and full HiQnet Network control compatible with a variety of platforms. Integrating industry-leading levels of sound quality, power, control, and durability, SRX800 is a perfect all in one solution wherever high performance, comprehensive control, and pristine sound are required. Each component in the SRX800 Series was purposefully designed and thought through to deliver a perfectly tuned system that is powerful, easy to use, and rugged enough for the most demanding applications.
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its
frequency range.

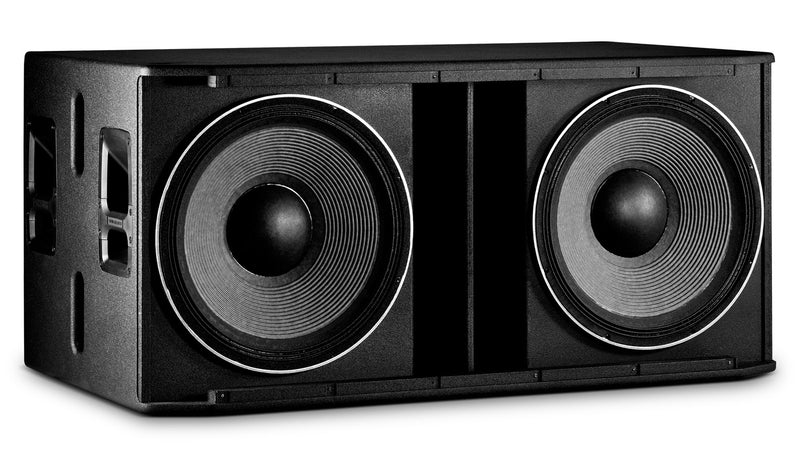

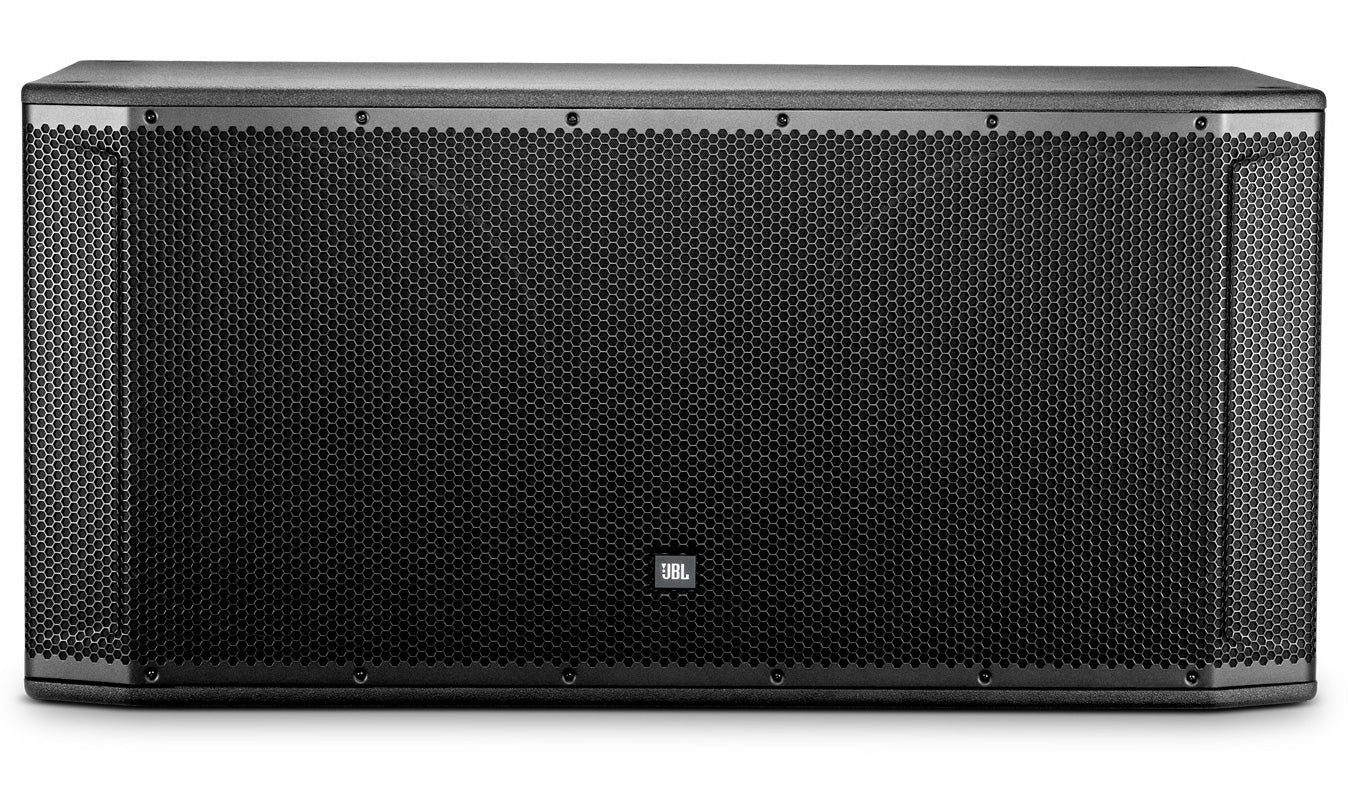

JBL SRX828SP FEATURES
* Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
* JBL Premium Transducers
* Drivecore Amplification By Crown
* Full User Configurable DSP
* Network Control
* JBL Engineered Application Presets
* LCD Screen and Glow in the Dark Ink on Back Panel
* Accepts JBL WK-4S Caster Kit
* 145 lb/65.9 kg
Applications
* Live performance systems.
* Mobile and fixed DJ systems.
* Sound system rental and tour.
* Permanent installations.
Specs
System TypeSelf powered dual 18”, subwoofer system
Max SPL Output141 dB
Frequency Range (-10 dB)29 Hz - 150 Hz
Frequency Response (-3 dB)35 Hz - 120 Hz
Amplifier DesignClass D
Power Rating 2000 W Peak
Dimensions
(H x W x D)574 x 1205 x 681 (mm)
22.57 x 47.42 x 26.79 (in)
Net Weight 65.9 kg (145 lb)
