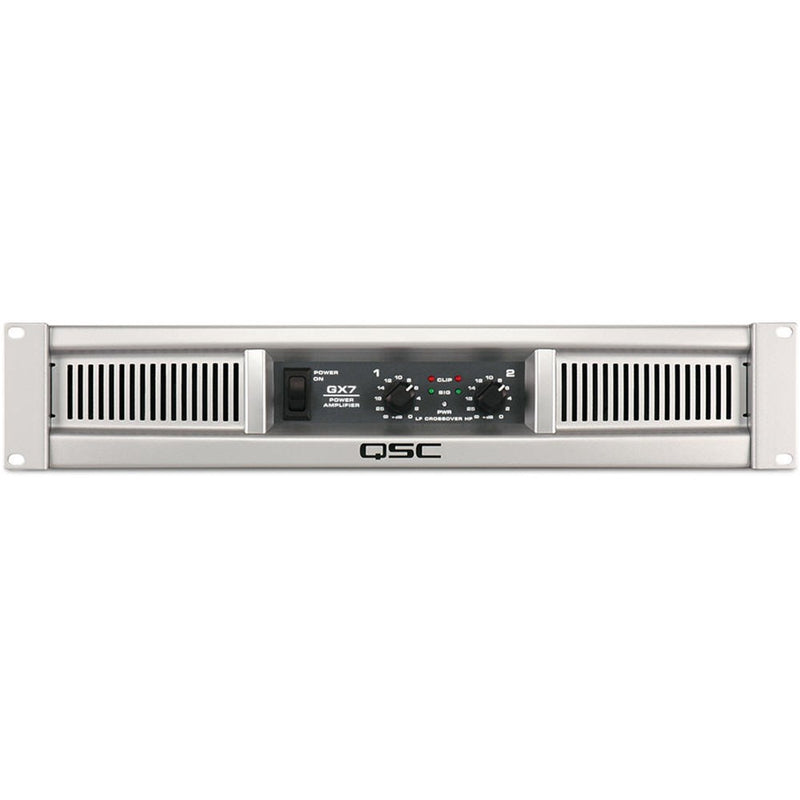

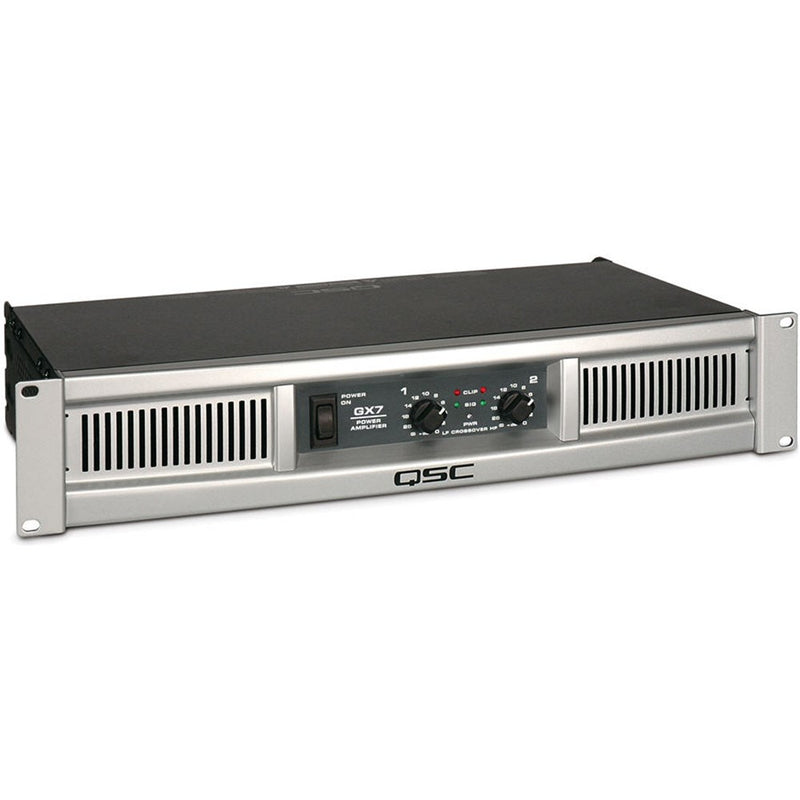

QSC GX7 Power Amplifier (2 x 1,000 Watts @ 4ohms)

Sale price$2,799.00 Regular price$2,929.00

QSC GX Series Power Amplifiers

The QSC GX7 amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. QSC designers have optimized output and appearance while reducing raw material cost and weight. It"'s all here – dramatic styling, easy hookup and adjustments, excellent audio quality and QSC reliability.

The QSC GX7 amplifier delivers just the right amount of power to the most popular speakers used by entertainers. Most loudspeaker manufacturers recommend an amplifier with power output equal to the speaker"'s ""Program (Music) Power"" rating or two times (2 x) the ""Continuous (RMS) Power"" rating.

The GX3 is ideal for speakers in the 300 watt (Program) range, while the GX5 provides full performance for 500 watt (Program) speakers. The GX7 outputs 725 watts into an 8 ohm load. Owners of popular 4 ohm loudspeakers (such as dual-woofer, two-way models) will find the 700 watt (4 ohm) power of the GX5 an ideal match while the GX7"'s 1000 watts will very capably power many of today"'s popular subwoofers or two typical 8 ohm speakers per channel.

QSC GX7 Features

The GX3 uses the latest evolution of the QSC Grounded Collector output system, for optimum cooling of the critical power transistors. A true Class B biasing system combines maximum thermal efficiency with excellent audio performance.

The GX5 uses a Class H system , based on key elements of the PLX Series, almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right where it needs to be without excess loss.

Both amplifiers use premium toroidal power transformers for reliable ""mid-weight"" performance. A variable-speed fan moves air crosswise through the amplifier, drawing cool air in over the power transformer, through the fan, and then over the heat sink. This keeps the transformer cool and allows a full size heat sink to fit in a down-sized chassis. As always, the amplifiers are fully protected from the usual hazards of the trade, ensuring stable performance and long life.

GuardRail

GuardRail protection delivers full peak power while preventing detrimental overloads. During excessive clipping, or extreme overheating, GuardRail reduces gain just enough to preserve the integrity of the music, protect the speakers and keep the audience excited, without unprofessional distortion levels or shutdowns.

Subwoofer/Satellite Crossover

A subwoofer reduces strain on the full-range speaker, allowing it to play louder, or letting a smaller speaker do the same job. The GX Series supports this mode with a Crossover switch that splits the full-range input entering Ch 1, sending 20 Hz - 100 Hz to the sub (Ch 1) and 100 Hz - 20 kHz to the top box (Ch 2). The front panel gain controls balance the sub and top box, while GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range.

Features

* Power levels matched to the most popular speakers used by entertainers
* Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker
   systems

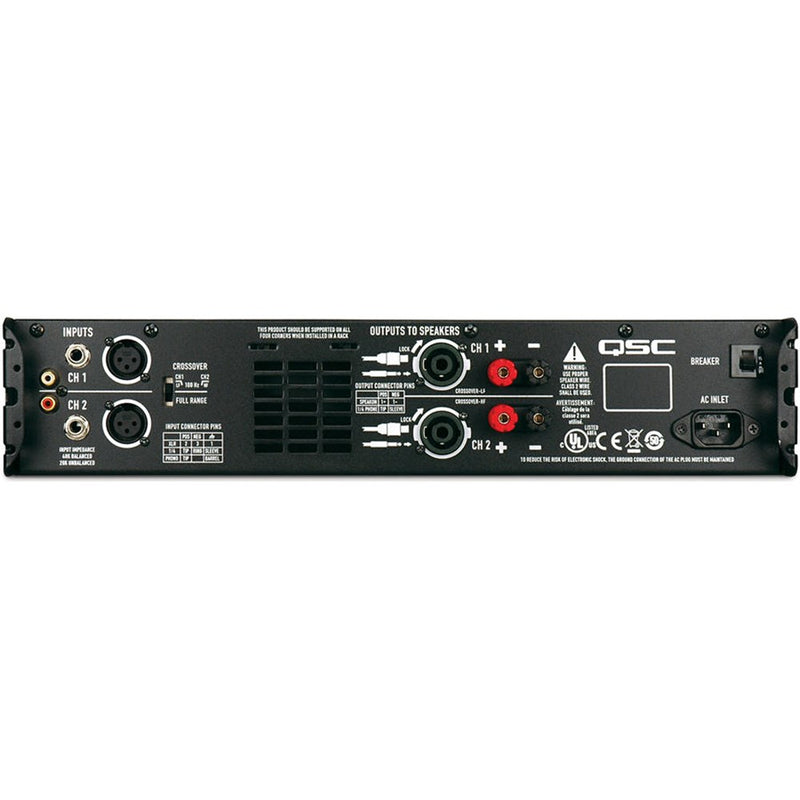

* Inputs: XLR, 1/4"" TRS and phono input connectors for compatibility with any
   source
* Outputs: Speakon® combo accepts, 1/4"" (TS) plugs or Speakon 2-pole and
   4-pole plugs (connects 2 poles only). Binding posts support all other speaker
   wiring systems.
* Minimum depth chassis (257 mm) fits in compact, inexpensive effects racks
* Lightweight – less than 30 lbs (13.5 kg)
* Detented gain controls for precise setting and matching of sensitivity
* GuardRail™ automatically protects the amplifier and loudspeakers from damage
   due to temperature rise or overdrive without shutting down the show
* Front panel LEDs monitor Power, Signal and Clipping
* Subwoofer/Satellite crossover built-in

Which GX amplifier is best for my loudspeakers?

 Model
 GX3 For 8 ohm speakers: 250 W - 350 W
 GX5 For 8 ohm speakers: 400 W - 600 W
 GX7 For 8 ohm speakers: 550 W - 750 W
 GX3 For 4 ohm speakers: 350 W - 500 W
 GX5 For 4 ohm speakers: 550 W - 900 W
 GX7 For 4 ohm speakers: 600 W - 1,000 W

SKU: QSC-GX7
QSC GX7 Power Amplifier (2 x 1,000 Watts @ 4ohms)
QSC GX7 Power Amplifier (2 x 1,000 Watts @ 4ohms) Sale price$2,799.00 Regular price$2,929.00
