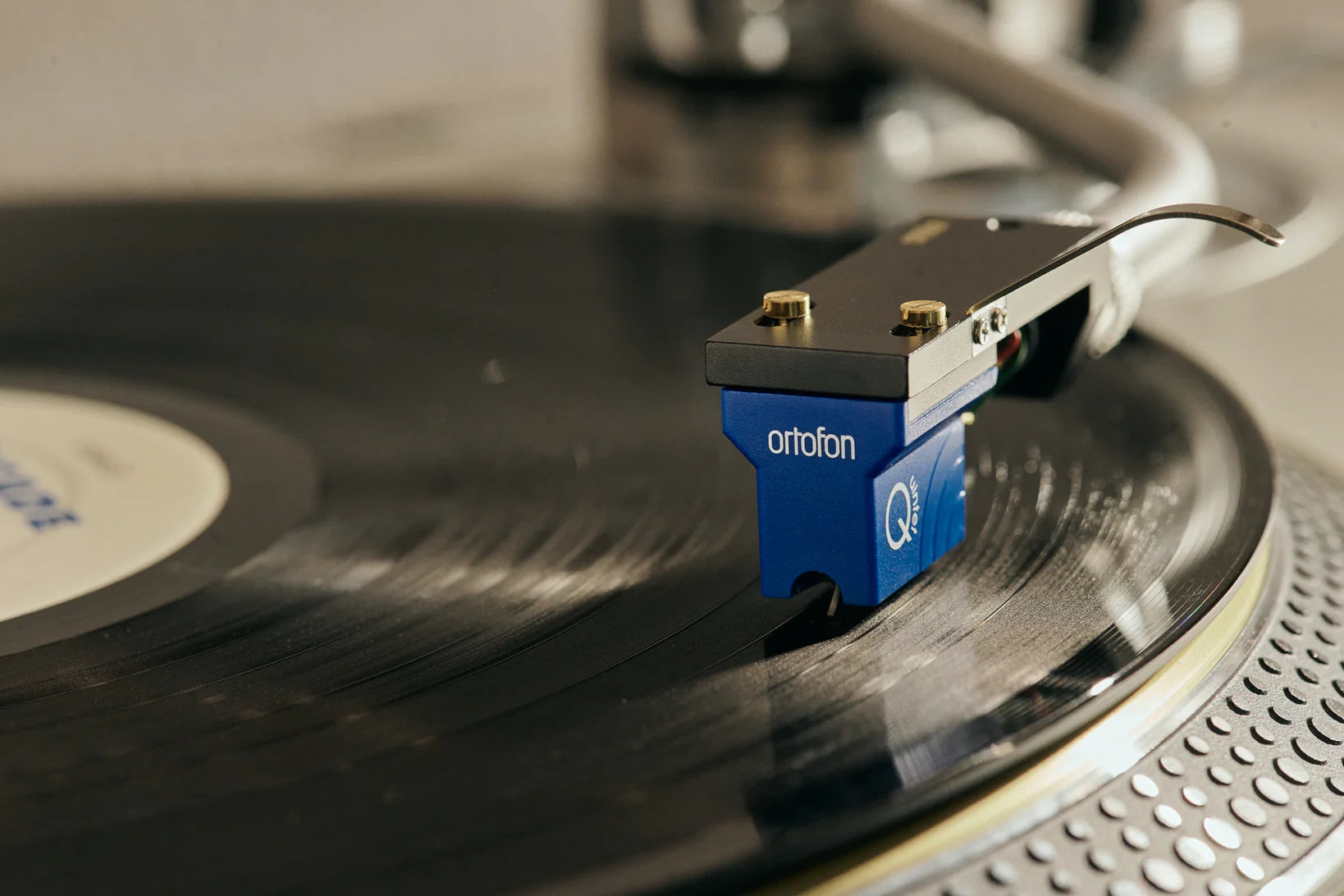

Ortofon MC QUINTET BLUE Moving Coil Audio Cartridge

Sale price$879.00 Regular price$969.00

The Quintet Blue will bring more space, depth and detail to your sound. The cartridge is a fantastic choice for any kind of music, especially rhythmic genres.

The Quintet Blue is a very homogeneous cartridge whose sound reproduction will tend toward a more smooth presentation compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever.

Tech Specs

Output voltage at 1 kHz 5 cm/sec | 0.5 mV
Channel balance | 1.5 dB
Channel separation at 1 kHz | 21 dB
Channel separation at 15 kHz | 14 dB
Frequency range at -3 dB | 20-25,000 Hz
Frequency response 20-20,000 Hz | +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force | 70 μm
Compliance, dynamic, lateral | 15 μm/mN
Stylus type | Nude Elliptical
Stylus tip radius | r/R 8/18 μm
Tracking force range | 2.1-2.5 g (21-25 mN)
Tracking force (recommended) | 2.3 g (23 mN)
Tracking angle | 20°
Internal impedance, DC resistance | 7 Ohm
Recommended load impedance | 20 Ohm
Cartridge body material | ABS/Aluminium
Coil wire material | Pure 4-nines copper
Cartridge colour | Blue
Cartridge weight | 9 g

SKU: MC-QUNTT-BLU-CART
