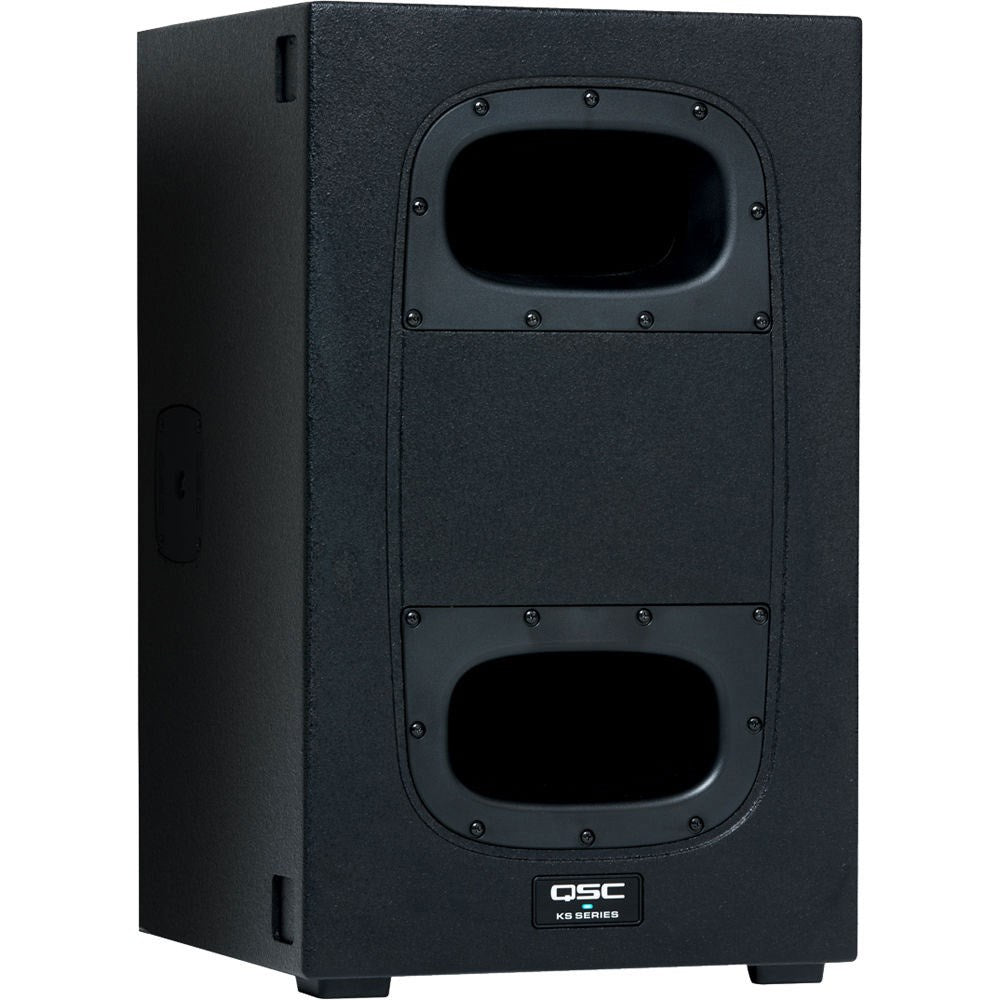

KS112 Compact Powered 12" Subwoofer

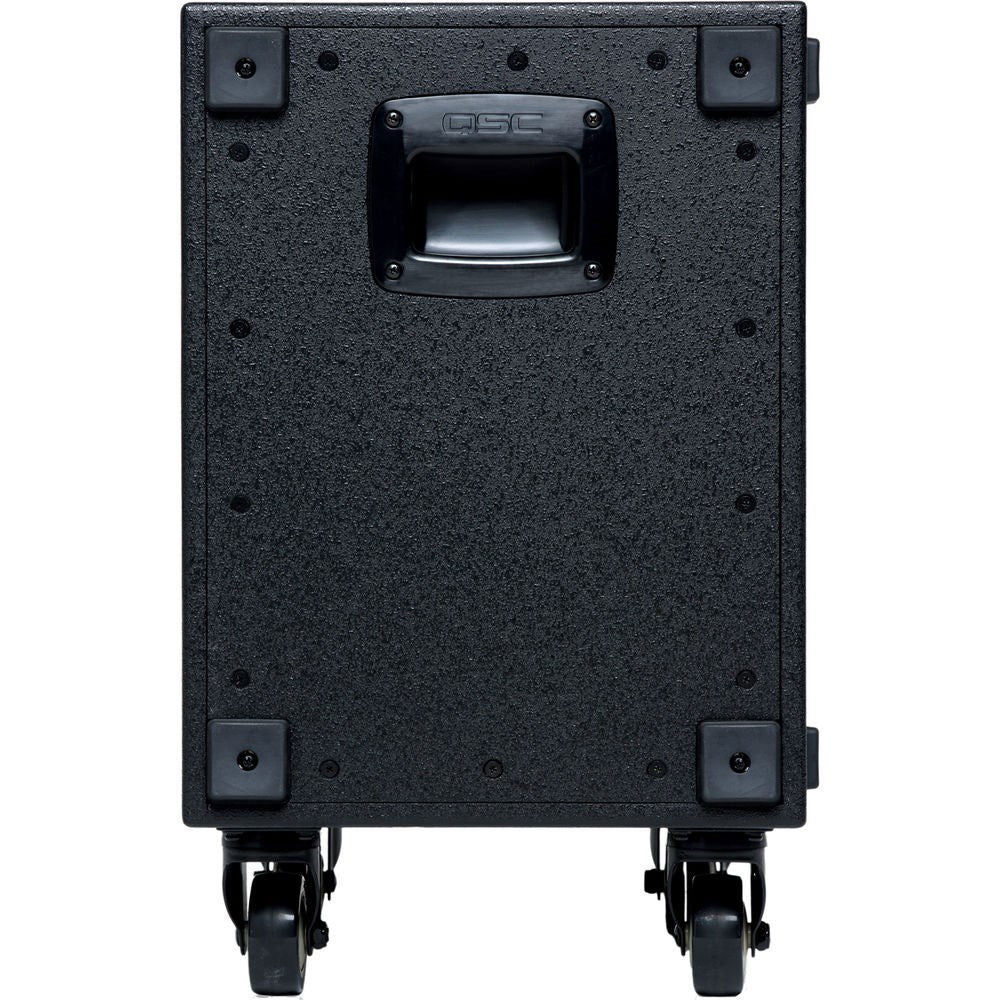

The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
Features
* High Output in an ultra-compact form factor
* 2000 Watt class D amplifier module
* 12-inch, long-excursion driver; 6th order bandpass design
* Variable crossover and savable/recallable scenes for commonly-used applications
* Intrinsic Correction™ tuning and loudspeaker management
* Refined, professional appearance looks great in any application
* Rugged painted wood enclosure for long life and lasting durability
* Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
* Optional KS-LOC security cover prevents unauthorized tampering of controls
* Complete EASE & CAD information available online
* 6-Year Warranty with registration
SPECIFICATIONS
Configuration 6th-Order Bandpass Subwoofer
LF Transducer 12-inch (305 mm), Cone
Frequency Response (-6 dB) 41 Hz - 108 Hz
Frequency Range (-10 dB) 38 Hz - 121 Hz
Maximum Rated SPL1 128 dB @ 1 m (peak)
Amplifier Class D
2000W (peak)
Cooling Low-noise, variable speed fan
Controls Power On/Off
Gain Control
Rotary encoder
2 x selection buttons
Indicators 2 x Power LED (front and rear)
Input Signal LED
Limiter Active LED
Connectors 2 x locking XLR/F 1/4" combo
2 x XLR/M (Loop-thru Output)
1 x locking IEC power connector
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure Details
Enclosure 15 mm Birch Plywood
Color Black (RAL 9011)
Grille Internal woofer cover
Dimensions (HWD) inches 24.5 x 15.5 x 24.25
Dimensions (HWD) mm 622 x 394 x 616
Net Weight 28.4 kg (62.6 lbs)
Shipping Weight 34.5 kg (76 lbs)

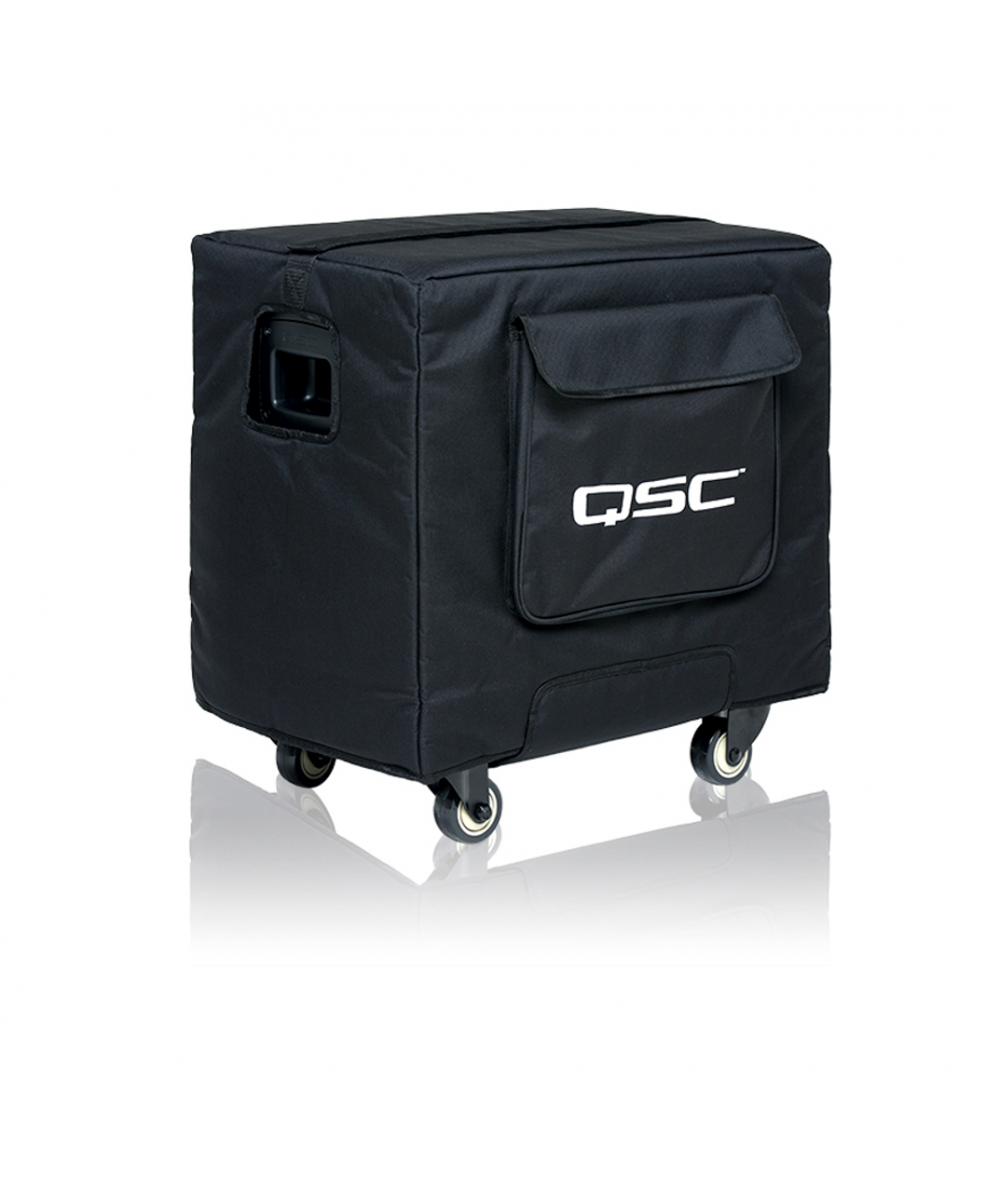

QSC KS112-CVR Padded Cover Available Separately.
